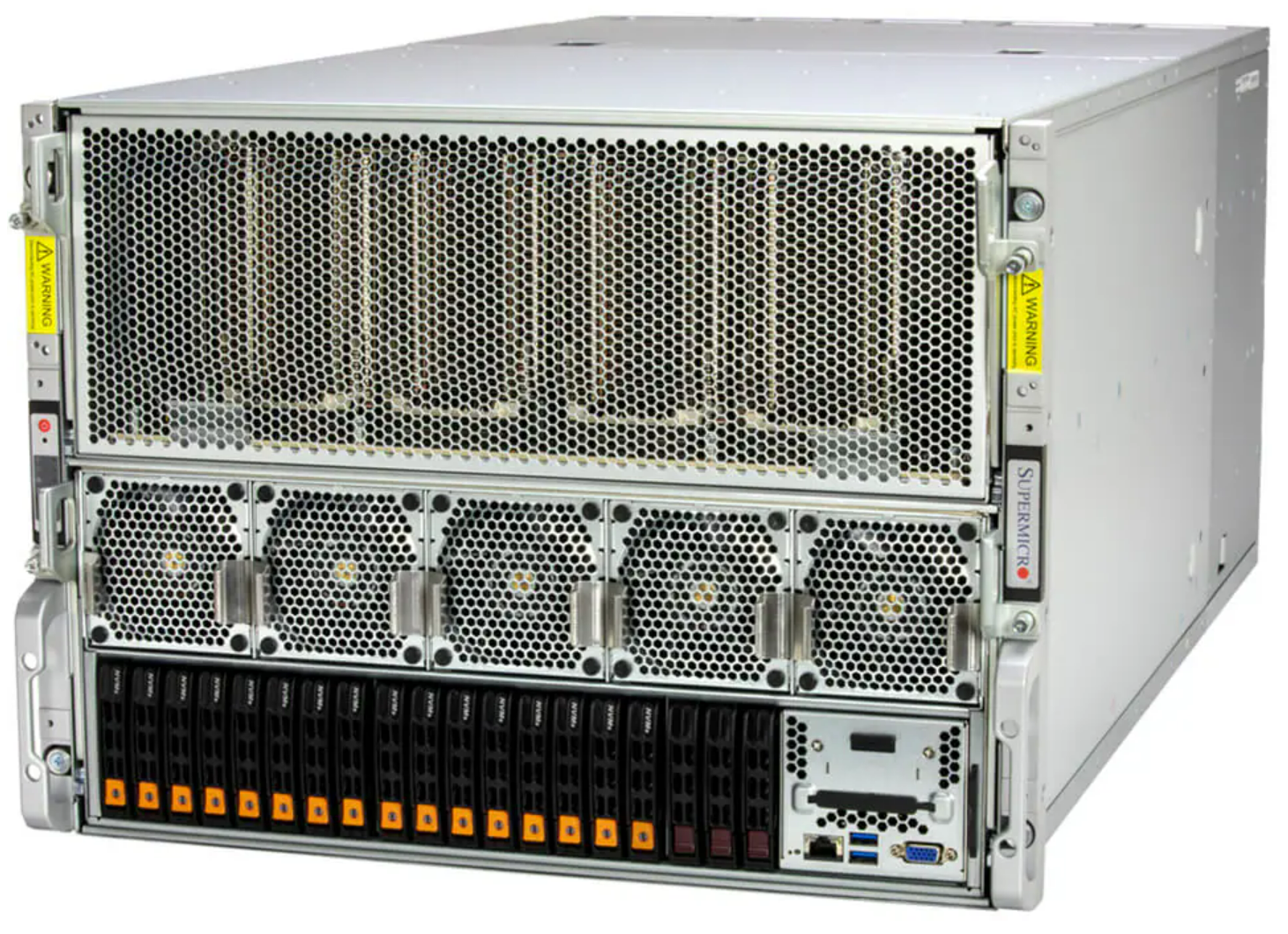

Supermicro HGX SYS-821GE-TNHR System
System
CPU
Memory
NVMe
GPU
Network
Management
TPM
Warranty
Konfigurator
Detaljer
Form Factor
8U Rackmount
Supported CPUs
Intel Xeon Scalable 5th Gen
Intel Xeon Scalable 4th Gen
CPU Sockets
2
Max supported memory
8TB
DDR5
Power Supply
Redundant
Titanium
3000 W
Key Applications
High Performance Computing
AI/Deep Learning Training
Industrial Automation, Retail
Healthcare
Conversational AI
Business Intelligence & Analytics
Drug Discovery
Climate and Weather Modeling
Finance & Economics
CPU
Intel Xeon Scalable Processor Platinum 8468 - 48-Core 2.10GHz 105 MB 350W 2P
Intel Xeon Scalable Processor Platinum 8468 - 48-Core 2.10GHz 105 MB 350W 2P
CPU Carrier [+228.00 NOK]
Memory
64GB DDR5 4800MHz ECC Registered LP 2Rx4 Hynix (16Gbit)
Total Memory
2048 GB
64GB DDR5 4800MHz ECC Registered LP 2Rx4 Hynix (16Gbit)
NVMe M.2 Enterprise
Missing controller or configuration!
Micron NVMe 7450 PRO - 960GB M.2-2280 PCIe 4.0 1400w/5000r MB/s 1 DWPD
[+3279.00 NOK]
false
NVMe 2.5" Enterprise
Missing controller or configuration!
Micron NVMe 7450 PRO - 7.68TB 2.5" U.3 15mm PCIe 4.0 5600w/6800r MB/s 1DWPD
[+17964.00 NOK]
false
GPU
Supermicro HGX Baseboard with 8x NVIDIA Delta-Next H100 80GB SXM5 GPUs installed
Supermicro HGX Baseboard with 8x NVIDIA Delta-Next H100 80GB SXM5 GPUs installed
Network Adapter 25 GbE
Missing controller or configuration!
NVIDIA ConnectX-6 Lx EN adapter card 25GbE Dual-port SFP28 PCIe 4.0 x8 No Crypto MCX631102AN-ADAT
[+4996.00 NOK]
false
Supermicro 2-Port SFP28 Mellanox 10/25GbE LAN card PCI-e LP ConnectX-4 DA
[+3000.00 NOK]
false
Network Adapter 10 GbE
Missing controller or configuration!
Supermicro 2-Port RJ45 Intel 10GbE LAN card PCI-e LP X550
[+5057.00 NOK]
false
OS
Supermicro DataCenter Management Package SSM (per node license)
Supermicro DataCenter Management Package SSM (per node license)
SMC
Supermicro TCG 2.0 Compliant Trusted Platform Module (TPM) with Infineon 9670 Vertical 2U+
Supermicro TCG 2.0 Compliant Trusted Platform Module (TPM) with Infineon 9670 Vertical 2U+
Assembly
Assembly and Testing Server
Assembly and Testing Server
Warranty
Warranty 3 Years
Warranty 3 Years [0.00 NOK]
Warranty 5 Years [+19641.50 NOK]
Support
Standard Support - Phone and Email – Office Hours 08:00-16:00 - Lifetime Support Agreement
Standard Support - Phone and Email – Office Hours 08:00-16:00 - Lifetime Support Agreement
Service
Standard Service - Pickup and return / parts cross shipment (included) - Per Year
Standard Service - Pickup and return / parts cross shipment (included) - Per Year [0.00 NOK]
Onsite Service - Next Business Day - Per Year [+235698.00 NOK]
Onsite Service - 4 hours - 08:00-17:00 - 4% of HW - Per Year [+471396.00 NOK]
Chassis Format
Rack Form Factor
8U Rackmount
CPU
Socket
Intel Xeon Scalable 5th Gen (Barebone)
Intel Xeon Scalable 4th Gen (Barebone)
# CPU Sockets
2
TDP
385 W
Cores up to
64
Supported Processors
Intel Xeon Scalable 4th Gen
Selected configuration
Selected product
Intel Xeon Scalable Processor Platinum 8468 - 48-Core 2.10GHz 105 MB 350W 2P
Cores
2 × 48
Threads
2 × 96
Cache
2 × 105 MB
Processor Base Frequency
2 × 2.10 GHz
Max Turbo Frequency
2 × 3.80 GHz
General
Dimensions
14" (355.6 mm) Height (Barebone)
17.2" (437 mm) Width (Barebone)
33.2" (843.28 mm) Depth (Barebone)
Manufacturer
Supermicro
Product Model
SYS-821GE-TNHR
Memory
Max Memory Size
8000 GB
Memory Type
DDR5
Max Memory Speed
5600 MHz
Selected configuration
Selected product

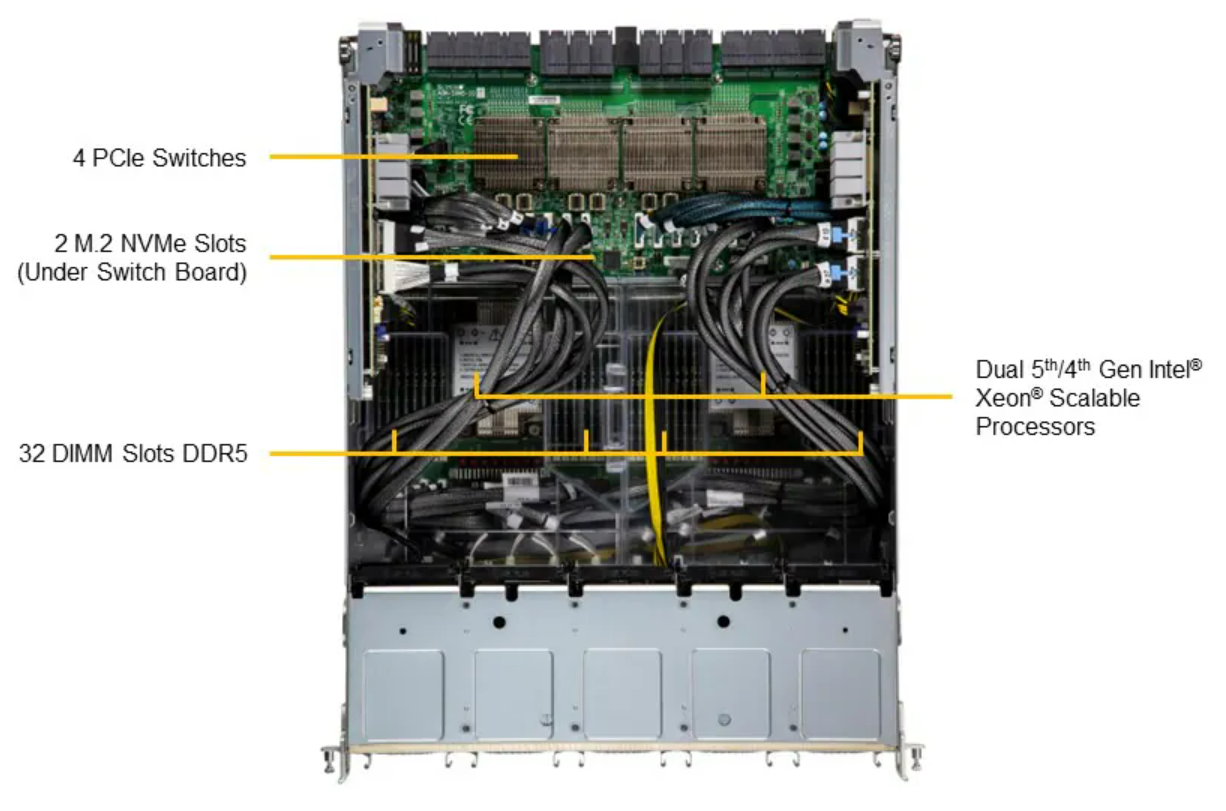

Supermicro 821GE-TNHR 8U GPU SuperServer - 2xIntel Xeon Scalable Gen4 32xDDR5 12x2.5" 10xPCIe 5.0 2xM.2
ECC Supported
Yes
DIMM Type
RDIMM
DIMM Slots
32
Memory Size
32 × 64 GB
Memory Speed
32 × 4800 MHz
Management
IPMI
Yes
Operating Environment
Operating Temperature
10°C ~ 30°C (50°F ~ 86°F)
On-Board Devices
Chipset
Intel® C741
Graphics
VGA via ASPEED AST2500 BMC
Onboard IPMI
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
Video Output
1 VGA
NVMe
16 NVMe
Drive Bays
Hot swap 2.5" Drive Bays
16 Bays
Power Supply
Redundant
Yes
80 Plus
Titanium
Output
3000 W
Konfigurator
Detaljer
Strømforbruk / PSU
2830/3000 W
British Thermal Unit (BTU)
8490/hour
2
/
2
32
/
32
0
/
18
1
/
1
1
/
10
System
Supermicro 821GE-TNHR 8U GPU SuperServer -...
×
1
CPU
Intel Xeon Scalable Processor Platinum 8468 - 48-Core 2.10GHz 105 MB 350W 2P
×
2
CPU Carrier
×
2
Memory
64GB DDR5 4800MHz ECC Registered LP 2Rx4 Hynix (16Gbit)
×
32
GPU
Supermicro HGX Baseboard with 8x NVIDIA Delta-Next H100 80GB SXM5 GPUs installed
×
1
TPM
Supermicro TCG 2.0 Compliant Trusted Platform...
×
1
Warranty
Assembly and Testing Server
×
1
Warranty 3 Years
×
1
Standard Support - Phone and Email – Office Hours
×
1
Standard Service - Pickup and return / parts cross shipment (included) - Per Year
×
3
Totalt
3 968 971 NOK
Leasing
i
137 882 NOK
/ 36 måneder
Forventet levering
3 dager
Legg i handlekurv
Vis valgte konfigurasjon
