IoT SuperServer SYS-E200-12D-8C
System
Memory
NVMe
OS
Warranty
Konfigurator
Detaljer
Form Factor
IoT
Supported CPU
Intel Xeon D-1700
CPU Socket
1
Max supported memory
DDR4
ECC Supported
128GB
M.2 Slot
1 NVMe M.2 slot
Power Supply
180 W
Key Applications
Virtualization Server
Firewall Applications
Network Security Appliance
Embedded Networking Applications
Memory
8GB DDR4 3200MHz ECC Registered
Total Memory
16 GB
8GB DDR4 3200MHz ECC Registered
16GB DDR4 3200MHz ECC Registered [+820 NOK]
32GB DDR4 3200MHz ECC Registered [+2 172 NOK]
64GB DDR4 3200MHz ECC Registered [+5 938 NOK]
NVMe M.2
Samsung NVMe PM9A1 - 256GB M.2-2280 PCIe 4.0 2700w/6400r MB/s 0.32 DWPD [Client]
Samsung NVMe PM9A1 - 256GB M.2-2280 PCIe 4.0 2700w/6400r MB/s 0.32 DWPD [Client]
Samsung SSD sets the standard in high-performance storage for PCs with rapid data processing and reliability in compact form factors.
Samsung NVMe PM9A1 - 512GB M.2-2280 PCIe 4.0 5000w/6900r MB/s 0.32 DWPD [Client] [+196 NOK]
Samsung SSD sets the standard in high-performance storage for PCs with rapid data processing and reliability in compact form factors.
Samsung NVMe PM9A1 - 1TB M.2-2280 PCIe 4.0 5100w/7000r MB/s 0.32 DWPD [Client] [+730 NOK]
Samsung SSD sets the standard in high-performance storage for PCs with rapid data processing and reliability in compact form factors.
Samsung NVMe PM9A1 - 2TB M.2-2280 PCIe 4.0 5200w/7000r MB/s 0.32 DWPD [Client] [+2 214 NOK]
Samsung SSD sets the standard in high-performance storage for PCs with rapid data processing and reliability in compact form factors.
Other Options
I would like another NVMe configuration
I would like another NVMe configuration
OS
No Operating System Installed
No Operating System Installed
Installation of Linux OS (CentOS Debian Ubuntu Gentoo etc.) [+1 066 NOK]
Assembly
Assembly and Testing Server
Assembly and Testing Server
Warranty
Warranty 5 Years
Warranty 3 Years [112.00 NOK]
Warranty 5 Years [0.00 NOK]
Support
Standard Support - Phone and Email – Office Hours 08:00-16:00 - Lifetime Support Agreement
Standard Support - Phone and Email – Office Hours 08:00-16:00 - Lifetime Support Agreement
Service
Standard Service - Pickup and return / parts cross shipment (included) - Per Year
Standard Service - Pickup and return / parts cross shipment (included) - Per Year [0.00 NOK]
Onsite Service - Next Business Day - Per Year [+5830.00 NOK]
Onsite Service - 4 hours - 08:00-17:00 - 4% of HW - Per Year [+9715.00 NOK]
Chassis Format
Rack Form Factor
IoT
General
Dimensions
1.69" (43 mm) Height (Barebone)
7.68" (195 mm) Width (Barebone)
8.89" (225.8 mm) Depth (Barebone)
Manufacturer
Supermicro
Product Model
SYS-E200-12D-4C
CPU
Socket
Intel Xeon D-1700
# CPU Sockets
1
TDP
67 W
Cores up to
8
Memory
DIMM Slots
2
Memory Type
DDR4
Max Memory Speed
2933 MHz
Selected configuration
Selected product
Supermicro E200-12D-8C Embedded Mini-ITX, Intel Xeon D-1736NT 2x10GbE, 2x25GbE SFP28
ECC Supported
True
DIMM Type
RDIMM
Max Memory Size
128 GB
Memory Size
2 × 8 GB
Memory Speed
2 × 3200 MHz
Expansion Slots
Operating Temperature
10°C ~ 35°C (50°F ~ 95°F)
M.2
1 NVMe M.2 slot
On-Board Devices
Chipset
System on Chip

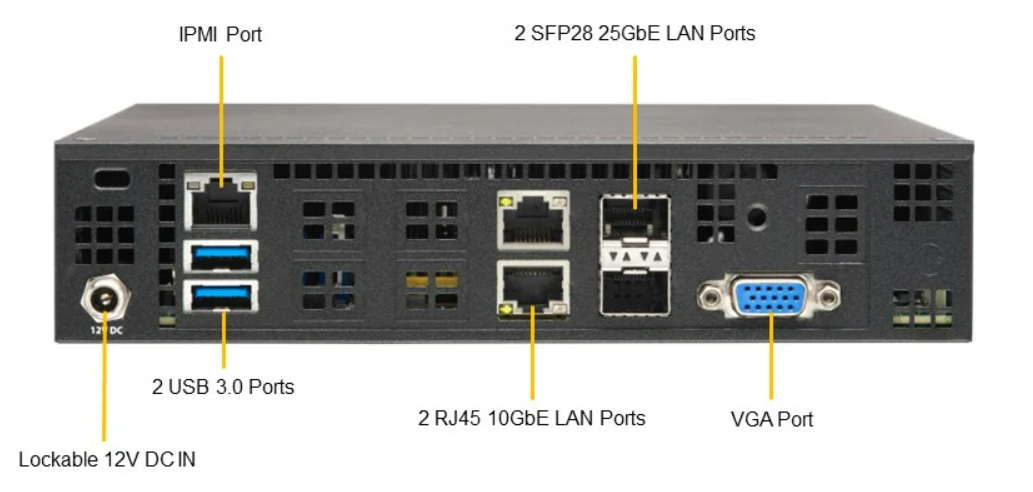

Input / Output
LAN
1 IPMI (Barebone)
2 RJ45 (Barebone)
2 SFP+ (Barebone)
Video Output
1 VGA
Management
IPMI
True
Power Supply
Redundant
No
80 Plus
Output
180 W
Konfigurator
Detaljer
Strømforbruk / PSU
80/180 W
British Thermal Unit (BTU)
240/hour
2
/
2
0
/
1
System
Supermicro E200-12D-8C Embedded Mini-ITX, Intel Xeon D-1736NT 2x10GbE, 2x25GbE SFP28
×
1
Memory
8GB DDR4 3200MHz ECC Registered
×
2
OS
No Operating System Installed
×
1
Warranty
Assembly and Testing Server
×
1
Warranty 5 Years
×
1
Standard Support - Phone and Email – Office Hours
×
1
Standard Service - Pickup and return / parts cross shipment (included) - Per Year
×
5
Totalt
32 254 NOK
Leasing
i
1 121 NOK
/ 36 måneder
Forventet levering
4-6 uker
Legg i handlekurv
Vis valgte konfigurasjon
