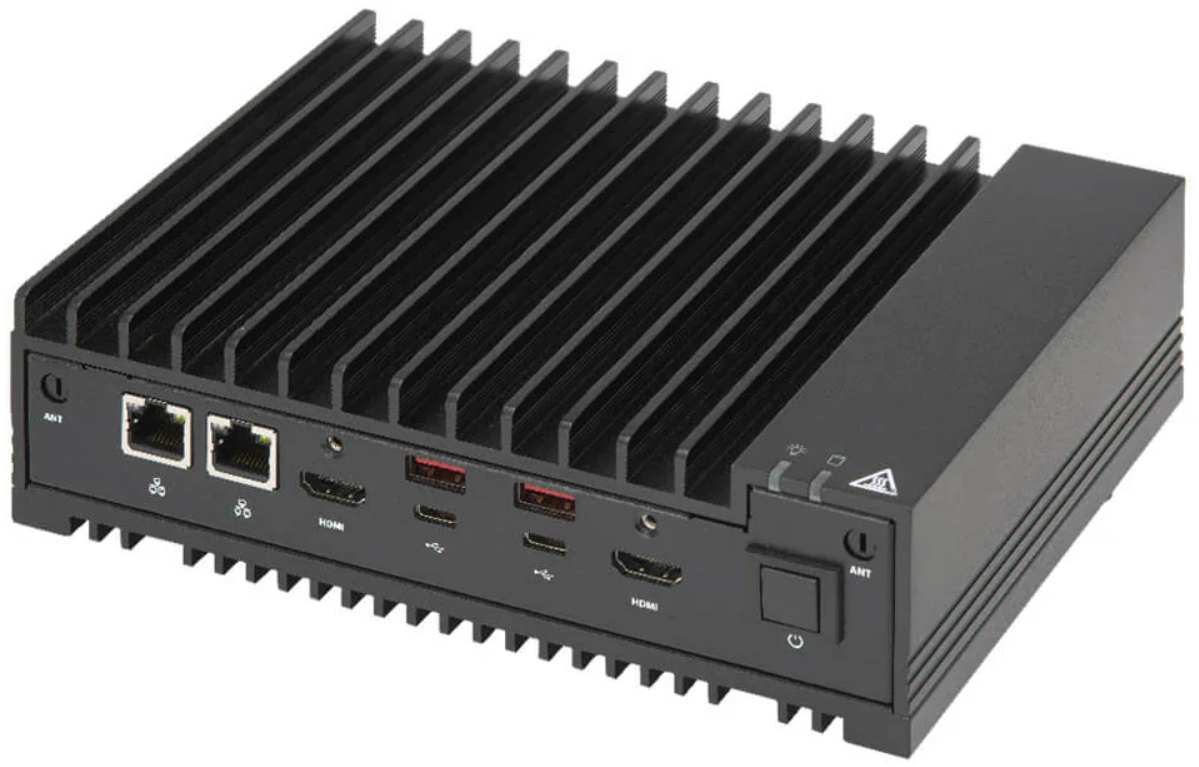

Supermicro E100-13AD-L IoT SuperServer EMBEDDED

Konfigurator
Detaljer

Configurator image

Features
Support for SIM card
Form Factor

IoT
Supported CPU
Intel Core 12th Gen
CPU Socket

1
Max supported memory

DDR5

64GB
M.2 Slot
Form Factor: M key 2242/2230/2280

Network Controller
Dual 2.5GbE LAN with Intel® I225-IT
Power Supply

84 W

Key Applications

Industrial Automation, Retail
Smart Medical Expert Systems
Digital Signage Kiosk, Interactive info system
IoT Gateway for Smart Factory
Smart Building, Security and Surveillance

Standard Temperature

8GB DDR5 4800MHz Non-ECC Unbuffered

8GB DDR5 4800MHz Non-ECC Unbuffered
16GB DDR5 4800MHz Non-ECC Unbuffered [+573 NOK]
32GB DDR5 4800MHz Non-ECC Unbuffered [+1 523 NOK]

Wide Temperature

8GB DDR5 4800MHz Non-ECC Unbuffered

8GB DDR5 4800MHz Non-ECC Unbuffered
16GB DDR5 4800MHz Non-ECC Unbuffered [+508 NOK]
32GB DDR5 4800MHz Non-ECC Unbuffered [+1 605 NOK]

NVMe

Innodisk NVMe 4TE2 (P80) - 128GB M.2-2280 PCIe 4.0 530w/1350r MB/s Wide Temp w/copper layer

Innodisk NVMe 4TE2 (P80) - 128GB M.2-2280 PCIe 4.0 530w/1350r MB/s Wide Temp w/copper layer
Innodisk NVMe 4TE2 (P80) - 256GB M.2-2280 PCIe 4.0 1080w/2870r MB/s Wide Temp w/copper layer [+315 NOK]
Innodisk NVMe 4TE2 (P80) - 512GB M.2-2280 PCIe 4.0 2040w/3550r MB/s Wide Temp w/copper layer [+943 NOK]
Innodisk NVMe 4TE2 (P80) - 1TB M.2-2280 PCIe 4.0 2990w/3850r MB/s Wide Temp w/copper layer [+2 020 NOK]
Innodisk NVMe 4TE2 (P80) - 2TB M.2-2280 PCIe 4.0 3340w/3450r MB/s Wide Temp w/copper layer [+4 534 NOK]

OS

No Operating System Installed

No Operating System Installed
Installation of Linux OS (CentOS Debian Ubuntu Gentoo etc.) [+1 066 NOK]
Windows 10 IoT Enterprise 2021 LTSC, High End, COA [+2 096 NOK]
Windows 11 IoT Enterprise GAC MultiLang ESD OEI High End [+2 096 NOK]

Assembly

Assembly and Testing Server

Assembly and Testing Server

Warranty

Warranty 5 Years

Warranty 3 Years [112.00 NOK]
Warranty 5 Years [0.00 NOK]

Support

Standard Support - Phone and Email – Office Hours 08:00-16:00 - Lifetime Support Agreement

Standard Support - Phone and Email – Office Hours 08:00-16:00 - Lifetime Support Agreement

Service

Standard Service - Pickup and return / parts cross shipment (included) - Per Year

Standard Service - Pickup and return / parts cross shipment (included) - Per Year [0.00 NOK]
Onsite Service - Next Business Day - Per Year [+5830.00 NOK]
Onsite Service - 4 hours - 08:00-17:00 - 4% of HW - Per Year [+9715.00 NOK]

Chassis Format

Rack Form Factor: IoT

CPU

# CPU Sockets: 1

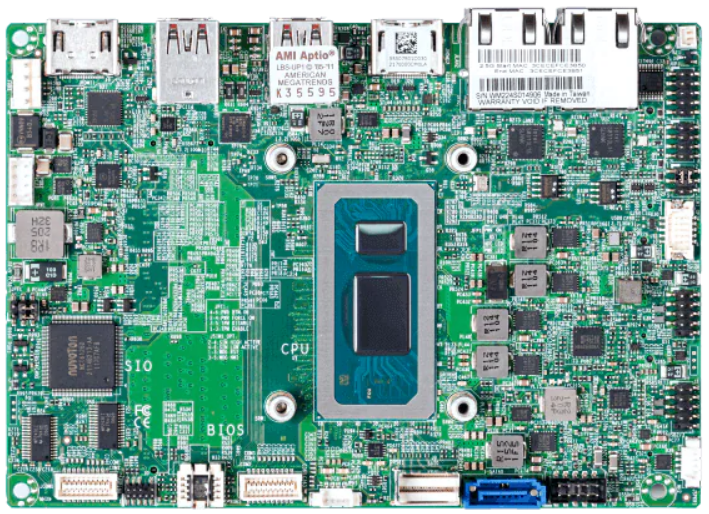

Selected product: Supermicro E100-13AD-L Embedded 3.5" SBC - Intel Core i3-1215UE 2xDDR5 SODIMM 2x2.5GbE LAN 1xM.2 224
Cores: 6

Threads: 8

Embedded: Yes

Socket: Intel Core 12th Gen

Processor Base Frequency: 1930-03-01 00:00:00 GHz

Cache: 10 MB

General

Dimensions: 1.73" (44mm) Height (Barebone); 5.94" (151mm) Depth (Barebone); 7.68" (195mm) Width (Barebone)

Product Model: SYS-E100-13AD-L

Memory

DIMM Slots: 2

Memory Type: DDR5

Max Memory Speed: 4800 MHz

Selected product: Supermicro E100-13AD-L Embedded 3.5" SBC - Intel Core i3-1215UE 2xDDR5 SODIMM 2x2.5GbE LAN 1xM.2 224
ECC Supported: No

DIMM Type: SODIMM

Max Memory Size: 64 GB

Management

IPMI: No

Operating Environment

Operating Temperature: Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)

Power Supply

Output: 84 W

Expansion Slots

M.2: Form Factor: M key 2242/2230/2280

On-Board Devices

Chipset: System on Chip

Network Controllers: Dual 2.5GbE LAN with Intel® I225-IT

Audio: ALC 888S HD Audio

Graphics: Intel UHD Graphics for 12th Gen Processors

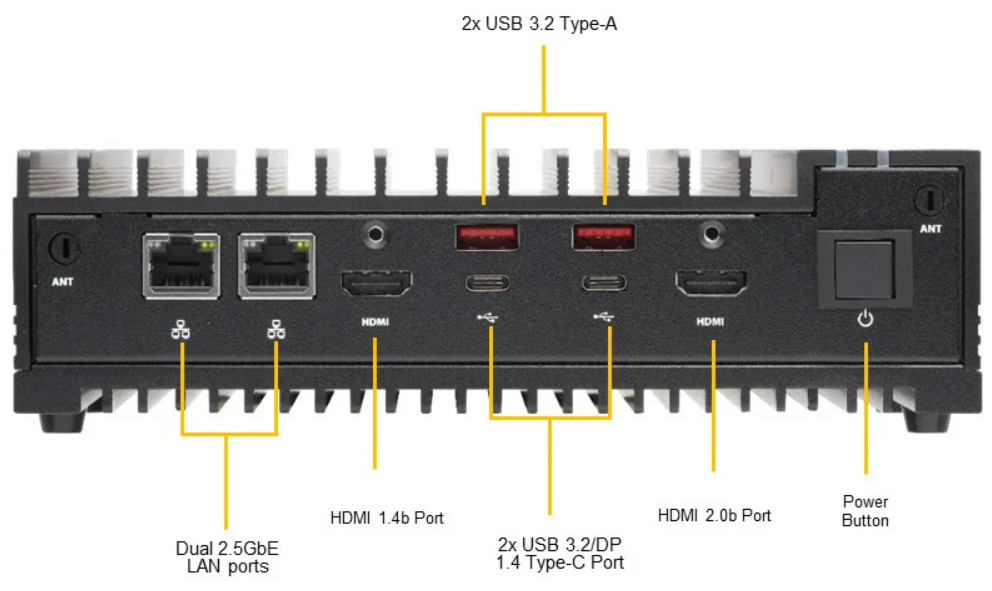

Input / Output

LAN: 1 RJ45

Video Output: 2 HDMI

Highlights

Features: Support for SIM card

NVMe

Selected product: Innodisk NVMe 4TE2 (P80) - 128GB M.2-2280 PCIe 4.0 530w/1350r MB/s Wide Temp w/copper layer
Capacity: 128 GB

Interface

Random Read: KIOPS

Random Write: KIOPS

Disk Writes Per Day (DWPD): DWPD

Konfigurator
Detaljer

Strømforbruk / PSU

25/85 W

British Thermal Unit (BTU)

75/hour

Resource image

0 / 2

Resource image

1 / 1

System

Supermicro E100-13AD-L Embedded 3.5" SBC - Intel... × 1

NVMe

Innodisk NVMe 4TE2 (P80) - 128GB M.2-2280 PCIe... × 1

OS

No Operating System Installed × 1

Warranty

Assembly and Testing Server × 1

Warranty 5 Years × 1

Standard Support - Phone and Email – Office Hours × 1

Standard Service - Pickup and return / parts cross shipment (included) - Per Year × 5

Totalt 13 332 NOK

Leasing i 463 NOK / 36 måneder

Forventet levering 4-6 uker
